README.md

Buszustände

Nachrichtenaufbau

5 Bit für 21 Zustände:

Bit(s)	Description
0	Start Symbol
1-8	Address
9	Read/Write
10	Acknoledge
11-18	Data
19	Acknoledge
20	Stop Symbol

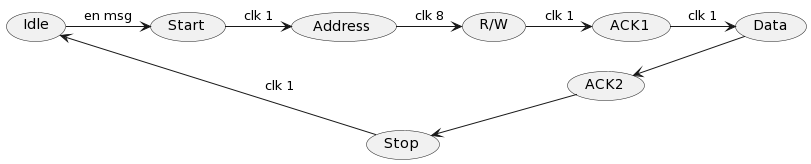

Zustände

Idle
sende Start
sende Adresse
sende Nachrichtenrichtung
sende Acknowledge
sende Datenbyte
sende Acknowledge
sende Stop
Idle
